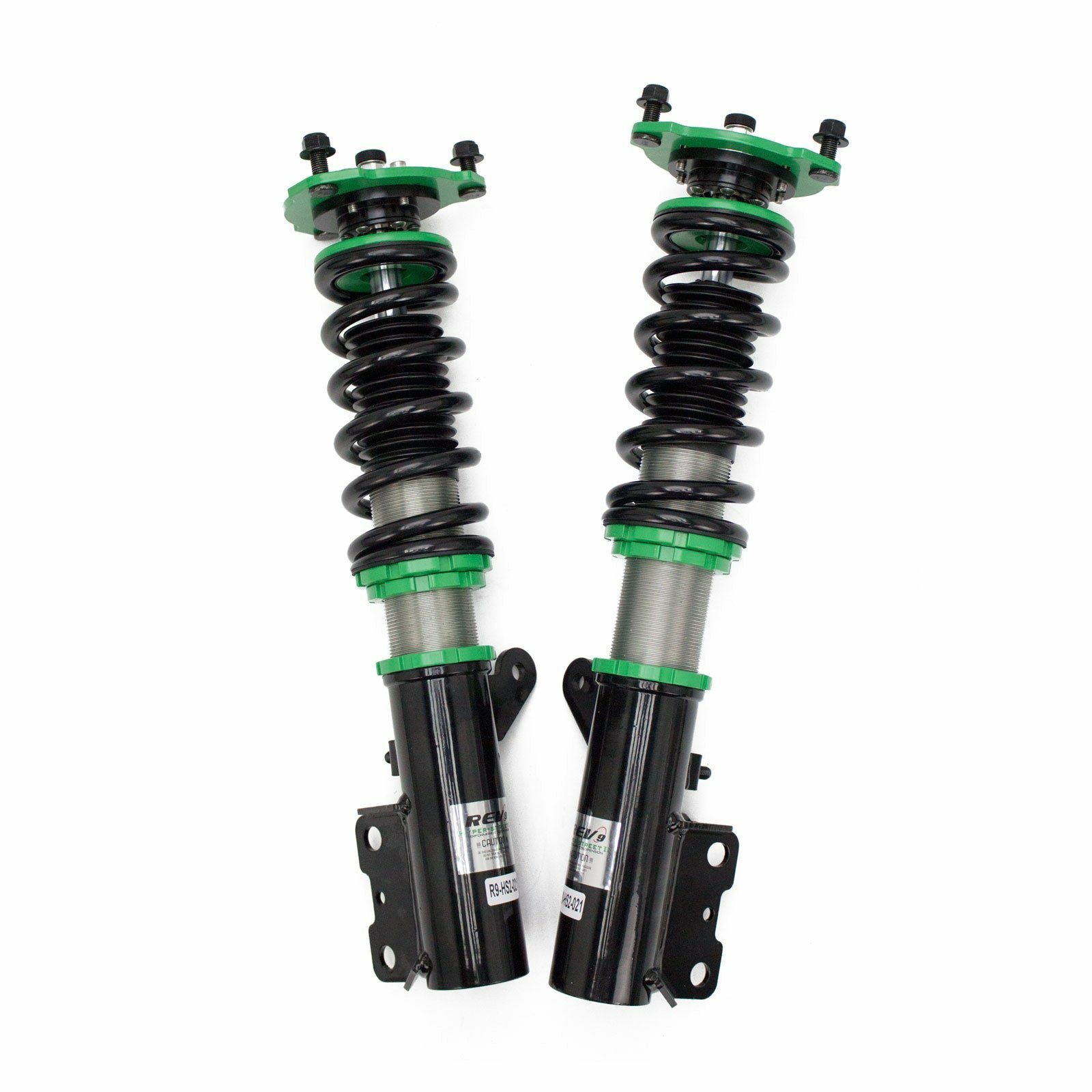

Rev9 Coilovers are performance lowering coilovers and only lower the vehicle from factory height. You can not raise the vehicle or keep it at OEM height with these coilovers. Unless otherwise noted, expect the coilover kit to lower your vehicle a minimum of 1″ to a maximum of 3″.
Fitment Information
- Mitsubishi Lancer (2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017)
- Chassis Code: CX/CY
- Drive Type: FWD & AWD
- Fits: All trim levels including Ralliart
Specs and Information
- Damping Levels: 32-Click Simultaneous Compression & Rebound Adjustment
- Height Adjustment: Independent of Spring Preload & Shock Stroke
- Front Spring Rate: 5kg/mm (280 lbs/inch)
- Rear Spring Rate: 5kg/mm (280 lbs/inch)
- Front Spring Length: 180mm
- Rear Spring Length: 180mm
- Front Top Mount: Adjustable Camber Plates
- Rear Top Mount: Extended Rubber Mounts
- Front Spring Inner Diameter: 62mm (2.44 inch)
- Rear Spring Inner Diameter: 62mm (2.44 inch)
- Part Number: R9-HS2-021_1
